Help with sample mixing routine please

[uko]

That's really cool, I'll be interested to hear how big the hit in sound quality and volume is. Not sure if I can make use of movep for buffering in my routine since it needs to be pretty adaptable for different output devices but I'll give it some thought

Concerning volume, a "classical" 2 voices mixing routine generally uses samples converted to 7 bits (so as the result has 8 bits).
With the add.l approach (or add.w as mentionned by dbug), you must convert to 6 bits (and unsigned) so as the addition works correctly. Therefore the amplitude of the signal will be divided by 2, so a loss of 6dB.

In the repository containing my replay code, there are also already compiled examples (require STe and probably 1 or 2 MBytes of RAM, I can't remember), using the different techniques I have implemented (and also different MOD files for some), so you will be able to compare the sound quality difference. They are here: https://github.com/Uko-TAL/STE_FullScre ... master/Bin
And the two following test programs use the same MOD file and allow to compare the two mixing techniques:
- MPL.TOS: mix using the move.l, add.l and movep.l technique
- MPFSOV.TOS: mix using move.b, add.b, and move.b
(When launched, wait few seconds until a text is displayed, then press the space bar)

And it is the move.l, add.l and movep.l option that I have also used in my latest demo (see my signature below).

[unseenmenace]

you could just do a pass with simple move.w (an)+ (or even possibly movem.w to batch write registers) for the first channel, and then only use the optimized "odd access" code for the second channel.

Makes sense, I'll just have slightly different macros for DMA Left and DMA Right, and do the right channel first as words, then fill the gaps with the left channel afterwards. Cheers

In the repository containing my replay code, there are also already compiled examples (require STe and probably 1 or 2 MBytes of RAM, I can't remember), using the different techniques I have implemented (and also different MOD files for some), so you will be able to compare the sound quality difference. They are here: https://github.com/Uko-TAL/STE_FullScre ... master/Bin
And the two following test programs use the same MOD file and allow to compare the two mixing techniques:
- MPL.TOS: mix using the move.l, add.l and movep.l technique
- MPFSOV.TOS: mix using move.b, add.b, and move.b
(When launched, wait few seconds until a text is displayed, then press the space bar)

And it is the move.l, add.l and movep.l option that I have also used in my latest demo (see my signature below).

Thanks, I'll have a look at that


For anyone that's interested, I'm currrently working on implementing volume adjustment. I'm only having 16 volume levels for now at least and I'm writing a bit of code that produces 256 separate tables, one for each combination of volumes for the 2 channels being mixed. Each table is 256 x 256 bytes and contains every combination of sample bytes adjusted for that specific combination of volumes. That way I just have to determine which table should be used before each buffering session, therefore having little if any impact on buffering speed. Hope that makes sense?

[unseenmenace]

For anyone that's interested, I'm currrently working on implementing volume adjustment. I'm only having 16 volume levels for now at least and I'm writing a bit of code that produces 256 separate tables, one for each combination of volumes for the 2 channels being mixed. Each table is 256 x 256 bytes and contains every combination of sample bytes adjusted for that specific combination of volumes. That way I just have to determine which table should be used before each buffering session, therefore having little if any impact on buffering speed. Hope that makes sense?

So I've just realised this would use WAY more memory than I have available so I'm going to have a slight re-think

[unseenmenace]

So in the end I needed a couple more registers so I had to have less of them used globally by the YM playback code and just stack a couple of them for each Timer A interrupt. This meant I could have addresses of 2 volume adjustment tables handy in a3 and a4, which were generated from a set of 16 fractional multipliers at the start of the program:

Code: Select all

bufdmav	MACRO
*** a0 = mixing table address
*** a1 = sample 1 address
*** a2 = sample 2 address
*** a3 = sample 1 vol table address
*** a4 = sample 2 vol table address
*** a5 = destination buffer address
*** d1 = sample 1 increment fraction
*** d2 = sample 2 inc fraction (upper) & sample 1 inc integer (lower)
*** d3 = sample 2 increment integer
*** d4 = sample 1 offset fraction
*** d5 = sample 2 offset fraction (upper) & sample 1 offset integer (lower)
*** d6 = sample 2 offset integer (lower)
	move.b	(a1,d5),d0		get ch1 sample byte
	ext.w	d0
	move.b	(a3,d0),d0		get volume adjusted byte
	ext.w	d0
	move.b	(a2,d6),d7		get ch2 sample byte
	ext.w	d7
	move.b	(a4,d7),d7		get volume adjusted byte
	ext.w	d7
	add.w	d7,d0			add sample words
	move.b	0(a0,d0),(a5)		get result and write to buffer
	addq.l	#2,a5			skip over other DMA channel
	add.w	d1,d4			add sam1 inc fraction to sam1 offset fraction
	addx.l	d2,d5			add sam1 inc int to sam1 offset int (lower) &
*					add sam2 inc frac to sam2 offset frac (upper)
	addx.w	d3,d6			add sam2 inc int to sam2 offset int
	ENDM

I did it in a fairly crappy brute force way to start with, just to make sure it works as intended and now I'm trying to optimise it a bit Worst case scenario however it's still fast enough to buffer 6 channels with full resolution and volume control at 12.5KHz, which with full sample resolution sounds pretty good to me. Hopefully I can also get it fast enough to do 4 channels at 25KHz.

[leonard]

Assuming that only works with a7 and not other address registers that might be difficult to take advantage of if I need interrupts to be able to happen right?

You can use the .b (a7)+ and also use interrupts. Just remind 68k has two a7 registers : user and supervisor stack. I'm using that in my AmigaPaulaEmulator: right before your mixing code, go to user mode move.w #$300,sr. Do your mixing code with a7 pointing on your sample buffer ( interrupts could occur because it will use supervisor stack pointer). At the end of your mixing, you can go back to supervisor using trap #0 for instance.

myTrap0: ori.w #$2000,(a7) ; set supervisor bit for following rte
rte

[thomas3]

You can use the .b (a7)+ and also use interrupts. Just remind 68k has two a7 registers : user and supervisor stack. I'm using that in my AmigaPaulaEmulator: right before your mixing code, go to user mode move.w #$300,sr. Do your mixing code with a7 pointing on your sample buffer ( interrupts could occur because it will use supervisor stack pointer). At the end of your mixing, you can go back to supervisor using trap #0 for instance.

myTrap0: ori.w #$2000,(a7) ; set supervisor bit for following rte
rte

NICE! Now THAT'S what I call a pro-tip

But - surely you run into problems if your interrupt code requires supervisor mode, unless you switch to supervisor and back each interrupt? Simple example: writing straight to colour registers?

[Dbug]

You can use the .b (a7)+ and also use interrupts. Just remind 68k has two a7 registers : user and supervisor stack. I'm using that in my AmigaPaulaEmulator: right before your mixing code, go to user mode move.w #$300,sr. Do your mixing code with a7 pointing on your sample buffer ( interrupts could occur because it will use supervisor stack pointer). At the end of your mixing, you can go back to supervisor using trap #0 for instance.

myTrap0: ori.w #$2000,(a7) ; set supervisor bit for following rte
rte

NICE! Now THAT'S what I call a pro-tip

But - surely you run into problems if your interrupt code requires supervisor mode, unless you switch to supervisor and back each interrupt? Simple example: writing straight to colour registers?

Imo, you perform Leonard's trick if you don't care about stability, like you have a long bunch of mixing to do and you want to enable the mouse and keyboard IRQ for example.

In the case of writing to color registers, you would like to be somewhat synchronized with the proper position on screen, so either you would not use that trick, or you would do the color changes using either the HBL or Timer B to change the colors at the proper location.

[thomas3]

Yeah, what I mean is, surely if an interrupt (timer B whatever) executes during the mixer code, it'll be run under user mode?

[Dbug]

Interrupts always run in supervisor mode, so that's not a problem
You can totally switch to supervisor to install an exception handler and then go back to user mode.

[thomas3]

Interrupts always run in supervisor mode, so that's not a problem
You can totally switch to supervisor to install an exception handler and then go back to user mode.

I didn't know this. Neat! Thanks!

[Grazey / PHF]

You can use the .b (a7)+ and also use interrupts. Just remind 68k has two a7 registers : user and supervisor stack. I'm using that in my AmigaPaulaEmulator: right before your mixing code, go to user mode move.w #$300,sr. Do your mixing code with a7 pointing on your sample buffer ( interrupts could occur because it will use supervisor stack pointer). At the end of your mixing, you can go back to supervisor using trap #0 for instance.

myTrap0: ori.w #$2000,(a7) ; set supervisor bit for following rte
rte

That's exactly what Jurgen Piscol does in his Soundmachine (c) 1990 routine - used in games such as Oxyd.

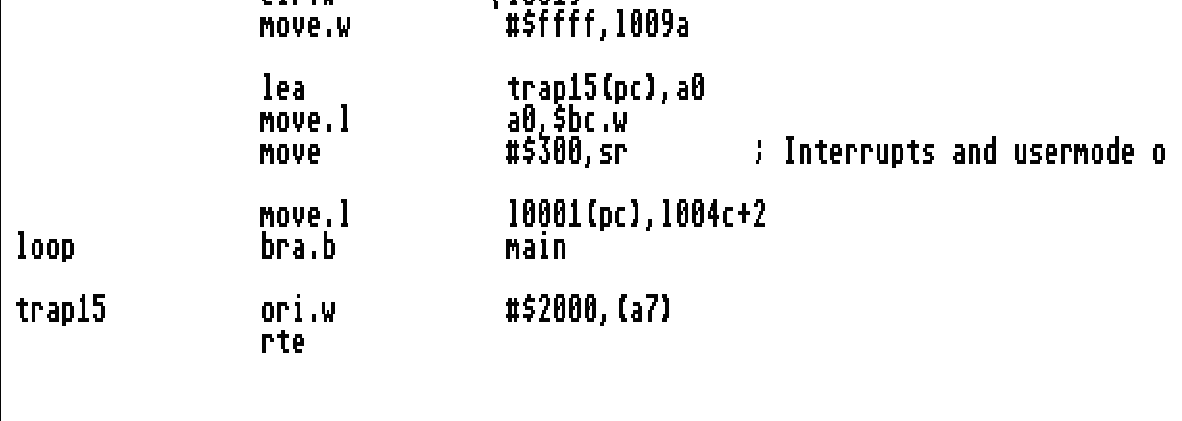

Here's my disassembly



Saying that, it's still in my WIP folder as I'm struggling to get it running with the OS.

Grazey
